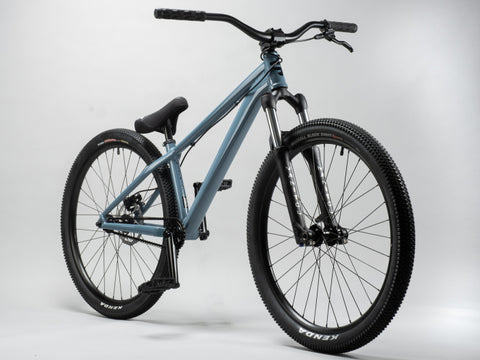

Mafia Blackjack Pro Bike - Grey
GEOMETRY
(A) TOP TUBE LENGTH561mm(B) CHAINSTAY LENGTH385mm(C) HEAD ANGLE69°(E) SEAT TUBE ANGLE70.5°(F) STANDOVER710mm(G) REACH400mm(H) STACK HEIGHT563mm(J) FORK OFFSET41mmSPECS
FRAMEBlackjack ProFORKSManitu Circus Comp 100mmHANDLEBARSMafia Pro Jump 1 W762mm X H62mmGRIPSMafiabikes Lucky 6 150mmHEADSET1 1/8” -1.5" Tapered - Integrated - Sealed bearingsSTEMForged Frontload - Ø31.8PEDALS9/16” Mafiabikes plasticSADDLEMafiabikes 1 Piece mid integrated alloy post - Ø25.4SEATPOSTØ25.4mm integrated with seatSEAT CLAMPØ35mm ExternalCRANKS170mm 4130 chromoly heat treated 19mm 8 spline 3 piece cranksCHAINRING/SPROCKET FRONT25t Mafiabikes Steel SprocketSPROCKET/CASSETTE REAR10t Fully sealed CassetteTYRE FRONTKenda Small Block Eight 26" x 2.35"TYRE REARKenda Small Block Eight 26" x 2.1"FRONT HUB20mm x 110mm, sealed bearings, DiscREAR HUBAlloy shell, 3/8" axle, Fully sealed bearings, DiscRIM REAR26" Double wall alloy 32hRIM FRONT26" Double wall alloy 32hBRAKE FRONTMechanical disc brake 160mm rotor (supplied in roadkit)BRAKE REARZoom - hydraulic disc brake 160mm rotorTECH
WEIGHT (LBS)30.200000FRAME WEIGHT2.0KgBB TYPE73mm ISO Euro (19mm)HEADSET TYPE1 1/8” -1.5" tapered integratedMAX TYRE WIDTH REAR66mm / 2.6"SEATPOST/SEATCLAMPØ25.4mm post with Ø31.8 shim, Ø35 seatclampFRONT AXLE/HUB SPACING20 x 110 Thru axleFRAME CONSTRUCTION AND DETAILS6061 T6 Alloy .Forged dropouts .Integrated chain tensioners .CNC headtube .IS Disk mount .Bespoke Hydroformed tubes .ISO Threaded BBROAD KIT IncludedFORK CONSTRUCTIONStraight steerer
